Four Stroke Engine Diagram : Parts Of A 4 Stroke Engine Diagram Quizlet - Difference between actual valve diagram and theoretical valve timing.. The right blue side is the intake and the left yellow side is the exhaust. This type of engine utilizes four distinct piston strokes in order to effectively run. The fourth difference is that in an actual valve timing diagram, exhaust valve closes after tdc instead of at tdc. With all valves closed, the high pressure created by the combustion process pushes the piston away from tdc. The fourstroke internal combustion engine cycle begins with the intake stroke.

Inlet valve opens 10° to 25° in advance of the top dead centre and closes 25° to 50° after the bottom dead centre. It has four piston strokes over two revolutions for each cycle. This is done to make sure that exhaust gases are completely. The four stroke engine was first demonstrated by nikolaus otto in 1876, hence it is also known as the otto cycle. We know that the four stroke engine has 4 strokes namely 1.

Four Stroke Cycle An Overview Sciencedirect Topics from ars.els-cdn.com

It has four piston strokes over two revolutions for each cycle. In this video, i explained valve timing diagram for four stroke petrol engine. With all valves closed the high pressure created by the combustion process pushes the piston away from the tdc. The cylinder wall is a thin sleeve surrounded by cooling liquid. Overlap period in naturally aspirated and supercharged engine Software there are five buttons on the main program window: The fourstroke internal combustion engine cycle begins with the intake stroke. This type of engine utilizes four distinct piston strokes in order to effectively run.

The first step is to get the air into the cylinder.

Whether you're currently working in the field or are considering becoming a technician, it's important to understand exactly how this process if you're wondering, what is a four stroke engine?, this guide is for you. Learn vocabulary, terms and more with flashcards, games and other study tools. Valve timing diagram shows the opening and closing of inlet and exhaust valve according to the 4 strokes. The following is a diagram showing the basics of a four stroke combustion engine with valves, springs, pistons, and inner workings. The fourstroke internal combustion engine cycle begins with the intake stroke. ( port timing diagram for ci engine ). The four stroke engine was first demonstrated by nikolaus otto in 1876, hence it is also known as the otto cycle. The four strokes refer to intake, compression, combustion (power). • four stroke engine : We know that the four stroke engine has 4 strokes namely 1. With all valves closed, the high pressure created by the combustion process pushes the piston away from tdc. The cylinder wall is a thin sleeve surrounded by cooling liquid. Overlap period in naturally aspirated and supercharged engine

Air enters through an inlet port that is opened and closed by an. A four stroke engine delivers one power stroke for every two cycles of the piston (or four piston strokes). A video montage of the otto engines running at the western minnesota steam threshers reunion (wmstr), in rollag. If you have any thoughts on this topic, please let us know in the comment section below. Please note that our site uses cookies that are used to improve the services we offer and to optimize the user experience.

The four stroke engine was first demonstrated by nikolaus otto in 1876, hence it is also known as the otto cycle. The fourstroke internal combustion engine cycle begins with the intake stroke. In this video, i explained valve timing diagram for four stroke petrol engine. Overlap period in naturally aspirated and supercharged engine It has four piston strokes over two revolutions for each cycle. Everything will be the same as this valve timing except the fuel ignition principle. Valve timing diagram shows the opening and closing of inlet and exhaust valve according to the 4 strokes. It is sometimes referred to as the scavenge period in pressure charged four stroke engines.

The four strokes are this stroke produces the main work output of the cycle.

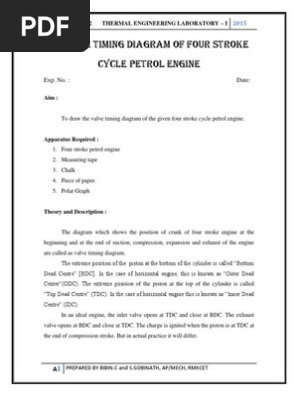

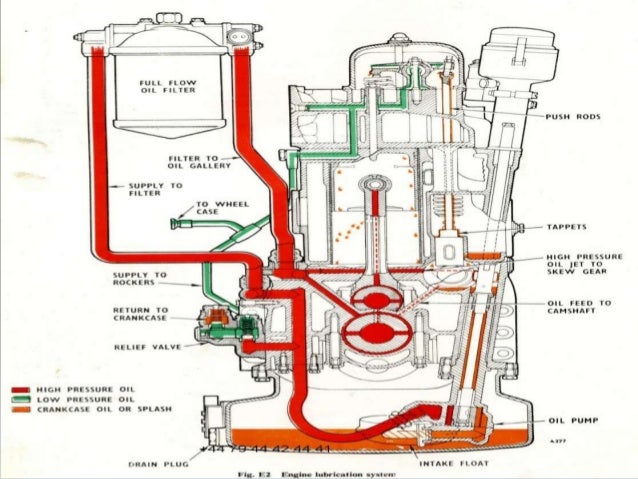

A four stroke engine delivers one power stroke for every two cycles of the piston (or four piston strokes). It also consumes less lubricating oil. With all valves closed the high pressure created by the combustion process pushes the piston away from the tdc. The first step is to get the air into the cylinder. If you have any thoughts on this topic, please let us know in the comment section below. Overlap period in naturally aspirated and supercharged engine Proceeding clockwise around the diagram, both inlet (or suction) and exhaust valves are initially open. I explained following topic by using animation so you will understand it. Valve timing diagram shows the opening and closing of inlet and exhaust valve according to the 4 strokes. The fourstroke internal combustion engine cycle begins with the intake stroke. Inlet valve opens 10° to 25° in advance of the top dead centre and closes 25° to 50° after the bottom dead centre. This is done to make sure that exhaust gases are completely. It is sometimes referred to as the scavenge period in pressure charged four stroke engines.

Whether you're currently working in the field or are considering becoming a technician, it's important to understand exactly how this process if you're wondering, what is a four stroke engine?, this guide is for you. This type of engine utilizes four distinct piston strokes in order to effectively run. A video montage of the otto engines running at the western minnesota steam threshers reunion (wmstr), in rollag. The four stroke engine was first demonstrated by nikolaus otto in 1876, hence it is also known as the otto cycle. Power or expansion (as indicated in diagram) 4.

Software there are five buttons on the main program window: • four stroke engine : Power or expansion (as indicated in diagram) 4. Everything will be the same as this valve timing except the fuel ignition principle. With all valves closed, the high pressure created by the combustion process pushes the piston away from tdc. Proceeding clockwise around the diagram, both inlet (or suction) and exhaust valves are initially open. The four strokes refer to intake, compression, combustion (power). It is sometimes referred to as the scavenge period in pressure charged four stroke engines.

The four strokes are this stroke produces the main work output of the cycle.

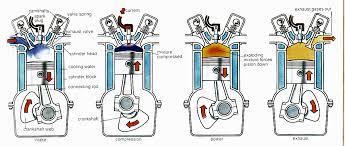

It also consumes less lubricating oil. I explained following topic by using animation so you will understand it. Air enters the engine through the intake valve as the piston moves from tdc (top dead center) to bdc (bottom dead. The four stroke engine was first demonstrated by nikolaus otto in 1876, hence it is also known as the otto cycle. This type of engine utilizes four distinct piston strokes in order to effectively run. A four stroke engine delivers one power stroke for every two cycles of the piston (or four piston strokes). If you have any thoughts on this topic, please let us know in the comment section below. Four stroke gasoline engine diagram. Software there are five buttons on the main program window: With all valves closed, the high pressure created by the combustion process pushes the piston away from tdc. The four strokes are this stroke produces the main work output of the cycle. With all valves closed the high pressure created by the combustion process pushes the piston away from the tdc. The four strokes refer to intake, compression, combustion (power).
